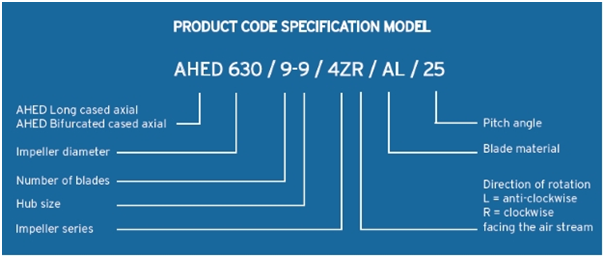

AHE-D Series Axial Flow Fan

AHE fully adjustable pitch fans are available in a full range of metric sizes from 250mm diameter up to 2000mm diameter. The wide range of diameters, blade configurations, pitch angles and motors speeds, allow accurate selection of the fan to match the specific duty.

Pitch angle adjustment can be readily carried out on site allowing the fan performance to be modified to the final system resistance.

The standard range of axial fans cover most applications, specific designed casings and mountings are available. Casings are manufactured from mild steel, galvanized sheet, hot dipped galvanized or epoxy painted after manufacturing.

AHE-D Long Case

  • More than 18 fan sizes, up to 2000mm
  • Airflow more than 250,000 m3/hr
  • Pressure to 16000Pa
  • Adjustable pitch aerofoil impeller
  • Aluminum or Polyamide blade materials
  • Heavy gauge mild steel casing
  • Tested in accordance to AMCA 210/85
  • Fan options include Bifurcated, 2 Stage Contra-rotating, 2 speed and fans for hazardous area.
